# Instalação de pacotes
winget install --accept-package-agreements --accept-source-agreements 7zip.7zip Adobe.Acrobat.Reader.64-bit AdrienAllard.FileConverter AgileBits.1Password Altap.Salamander AltSnap.AltSnap Amazon.Kindle AnyDesk.AnyDesk voidtools.Everything GIMP.GIMP.3 vim.vim Audacity.Audacity Beeper.Beeper calibre.calibre Canonical.Ubuntu.2204 9P1J8S7CCWWT Datronicsoft.SpacedeskDriver.Server dbeaver.dbeaver.community Docker.DockerDesktop FastStone.Viewer GeorgieLabs.SoundWireServer GitHub.GitHubDesktop Google.Chrome Google.GoogleDrive HandBrake.HandBrake HeidiSQL.HeidiSQL 9NK8T1KSHFFR Inkscape.Inkscape Insomnia.Insomnia IrfanSkiljan.IrfanView JGraph.Draw Kairos.DuetDisplay MarekJasinski.FreeCommanderXE Microsoft.Azure.StorageExplorer Microsoft.Git Microsoft.PowerToys Microsoft.VCRedist.2013.x64 Microsoft.VisualStudioCode Microsoft.WindowsTerminal Microsoft.WSL Mozilla.Firefox Mozilla.Thunderbird.pt-BR Notepad++.Notepad++ OBSProject.OBSStudio OlegShparber.Zeal Oracle.JavaRuntimeEnvironment Oracle.VirtualBox P-StSoftware.WinSSHTerm PeterPawlowski.foobar2000 PuTTY.PuTTY Python.Launcher Python.Python.3.5 Python.Python.3.6 Python.Python.3.7 Python.Python.3.8 Python.Python.3.9 Python.Python.3.10 Python.Python.3.11 Python.Python.3.12 Python.Python.3.13 RustDesk.RustDesk Samsung.DeX Skillbrains.Lightshot SumatraPDF.SumatraPDF Tailscale.Tailscale TeamViewer.TeamViewer TheDocumentFoundation.LibreOffice UnifiedIntents.UnifiedRemote VideoLAN.VLC Voicemeeter WinSCP.WinSCP PassmarkSoftware.OSFMount Chocolatey.Chocolatey
# Atualiação dos pacotes instalados
winget update --all --include-unknown
# Instalação Fira Code
choco install firacode nerd-fonts-Noto -y
# Instalar o TAILSCALE
curl -fsSL https://tailscale.com/install.sh | sh
# SE DER ERRO no certificado, executar as linhas abaixo e instalar com o passo 1
cp -a /etc/ca-certificates.conf /etc/ca-certificates.conf-$(date +"%m-%d-%Y-%H:%M:%S") && sed -i 's|^mozilla\/DST_Root_CA_X3\.crt|!mozilla/DST_Root_CA_X3.crt|' /etc/ca-certificates.conf && curl -sk https://letsencrypt.org/certs/isrgrootx1.pem -o /usr/local/share/ca-certificates/ISRG_Root_X1.crt && update-ca-certificates --fresh && curl -fsSL https://tailscale.com/install.sh | sh
# Gerar uma chave no admin do Tailscale
# Conectar na rede com o comando abaixo
tailscale up --hostname=NOME_DO_HOST --authkey tskey-auth-xxxxxxxxx-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
curl -L https://aka.ms/downloadazcopy-v10-linux | sudo tar --strip-components=1 -C /usr/local/bin --no-same-owner --exclude="*.txt" -xzvf - | sudo chmod 755 /usr/local/bin/azcopy
wget http://download.teamviewer.com/download/linux/teamviewer-host_amd64.deb
apt install ./teamviewer-host_amd64.deb
teamviewer passwd sua_senha
#Instalar o OpenSSH
Get-WindowsCapability -Online | Where-Object Name -like 'OpenSSH*'
Add-WindowsCapability -Online -Name OpenSSH.Server~~~~0.0.1.0
Start-Service sshd
Set-Service -Name sshd -StartupType 'Automatic'
#Abrir porta no firewall:
netsh advfirewall firewall add rule name="Open Port 22" dir=in action=allow protocol=TCP localport=22
#Script Powershell para adicionar a regra se ela não existir
if (!(Get-NetFirewallRule -Name "OpenSSH-Server-In-TCP" -ErrorAction SilentlyContinue | Select-Object Name, Enabled)) {
Write-Output "Firewall Rule 'OpenSSH-Server-In-TCP' does not exist, creating it..."
New-NetFirewallRule -Name 'OpenSSH-Server-In-TCP' -DisplayName 'OpenSSH Server (sshd)' -Enabled True -Direction Inbound -Protocol TCP -Action Allow -LocalPort 22
} else {
Write-Output "Firewall rule 'OpenSSH-Server-In-TCP' has been created and exists."
}
winget install Microsoft.OpenSSH.Preview
netsh advfirewall firewall add rule name="Port 22" dir=in action=allow protocol=TCP localport=22
net user myusername "mypassword" /add /passwordchg:no /y
net localgroup "Administradores" "myusername" /add
# Para trocar a senha
net user myusername "mypassword" /passwordchg:no /y
iex ((New-Object System.Net.WebClient).DownloadString('https://chocolatey.org/install.ps1'))
Set-ExecutionPolicy Bypass -Scope Process -Force;
[System.Net.ServicePointManager]::SecurityProtocol = [System.Net.ServicePointManager]::SecurityProtocol -bor 3072;
iex ((New-Object System.Net.WebClient).DownloadString('https://community.chocolatey.org/install.ps1'))
# Ler a senha do usuário
$Password = Read-Host -AsSecureString
# Ou por linha de comando
$Password="Teste123" | ConvertTo-SecureString -AsPlainText -Force
$User = "NEWUSER"
New-LocalUser $User -Password $Password -FullName "USER_FULL_NAME" -Description "DESCRIPTION" -AccountNeverExpires -PasswordNeverExpires
Add-LocalGroupMember -Group "Administrators" -Member $User
Set-LocalUser -Name $User -PasswordNeverExpires:$true
# Remover usuário
Remove-LocalUser -Name "USER_ACCOUNT_NAME"
New-Item -ItemType Junction -Path "$env:Path\To\Map" -Target "C:\Path\Target"
# No admin das VMS
# Networking >> Virtual cloud networks >> vcn-xxx-xxx >> Security List Details
# Editar o arquivo de conf
vim /etc/iptables/rules.v4
# Adicionar a regra
-A INPUT -p tcp --dport 12345 -j ACCEPT
iptables -A INPUT -p tcp --dport 443 -m state --state NEW -m recent --set
iptables -A INPUT -p tcp --dport 443 -m state --state NEW -m recent --update --seconds 10 --hitcount 10 -j REJECT
iptables -N STATE0
iptables -A STATE0 -p udp --dport 100 -m recent --name KNOCK1 --set -j DROP
iptables -A STATE0 -j DROP
iptables -N STATE1
iptables -A STATE1 -m recent --name KNOCK1 --remove
iptables -A STATE1 -p udp --dport 200 -m recent --name KNOCK2 --set -j DROP
iptables -A STATE1 -j STATE0
iptables -N STATE2
iptables -A STATE2 -m recent --name KNOCK2 --remove
iptables -A STATE2 -p udp --dport 300 -m recent --name KNOCK3 --set -j DROP
iptables -A STATE2 -j STATE0
iptables -N STATE3
iptables -A STATE3 -m recent --name KNOCK3 --remove
iptables -A STATE3 -p tcp --dport 22 -j ACCEPT
iptables -A STATE3 -j STATE0
iptables -A INPUT -m recent --name KNOCK3 --rcheck -j STATE3
iptables -A INPUT -m recent --name KNOCK2 --rcheck -j STATE2
iptables -A INPUT -m recent --name KNOCK1 --rcheck -j STATE1
iptables -A INPUT -j STATE0
# Teste
HOST=seu_host
echo -n "*" | nc -q1 -u $HOST 100
echo -n "*" | nc -q1 -u $HOST 200
echo -n "*" | nc -q1 -u $HOST 300
ssh user@$HOST
cd ~
vim .vimrc
set tabstop=4 " tabs are displayed as 4 spaces
set expandtab
set shiftwidth=4 " by default, when auto-identing, add 4 spaces (or 1 tabstop)
set foldmethod=marker " fold on markers
set scrolloff=1 " always show one line around the cursor
set showmatch " show matching bracket
set noerrorbells " no error bells
set autowrite " write the file when switching between files or something
set nowrap " do not wrap long lines
set nobackup " do not keep a backup file, use versions instead
set history=50 " keep 50 lines of command line history
set ruler " show the cursor position all the time
set showcmd " display incomplete commands
set incsearch " do incremental searching
set formatoptions=tcq " wrap with textwidth, wrap comments, insert commend leader (twice), format comments
set smartindent " smart identation
set wim=longest,list " file auto-completion
set vb t_vb= " convert bells to visual bells and do nothing as visual bell
set t_Co=256 " 256 color terminals
let mapleader="," " use comma to start user-defined (in plugins) functions
set cursorline
hi CursorLine cterm=NONE ctermbg=254 ctermfg=NONE
# PDF
libreoffice --headless --convert-to pdf file.odt
# PDF/A
unoconv -f pdf -eSelectPdfVersion=1 file.odt
qpdf --show-npages file.pdf
pdfinfo file.pdf
mysql --skip-column-names --batch -e 'select CONCAT("DROP TABLE IF EXISTS ", TABLE_SCHEMA, ".", TABLE_NAME, "; CREATE OR REPLACE VIEW ", TABLE_SCHEMA, ".", TABLE_NAME, " AS ", VIEW_DEFINITION, "; ") table_name from information_schema.views'
# remote
ssh -N -R 7000:localhost:22 user@other.host
# local
telnet localhost 7000
find . -type f -printf "%-.22T+ %16s $PWD/%P\n" | sort | tail
var fileName = "file.pdf";
if (File.Exists(fileName)) File.Delete(fileName);
Assembly assembly = Assembly.GetExecutingAssembly();
using (var input = assembly.GetManifestResourceStream(fileName))
using (var output = File.Open(fileName, FileMode.CreateNew)) {
if (input == null) throw new FileNotFoundException(fileName + ": Embedded resoure file not found");
var buffer = new byte[32768];
int read;
while ((read = input.Read(buffer, 0, buffer.Length)) > 0) {
output.Write(buffer, 0, read);
}
output.Flush();
System.Diagnostics.Process.Start(fileName);
}
# OpenSSL pfx to pem
openssl pkcs12 -in cert.pfx -out cert.pem –nodes
# OpenSSL p7s pkcs7
openssl smime -sign -nodetach -in qrx.py -out qrx.py.p7 -outform pem -inkey ghc-ecpf-2018.key -signer ghc-ecpf-2018.pem
openssl smime -verify -in qrx.py.p7 -inform pem -CAfile cert/cadeias/bundle.pemx
openssl pkcs7 -print_certs -in qrx.py.p7
# XML Sign dsig cert
CERT=/data/cert.pem
xmlsec1 --sign --privkey-pem $CERT,$CERT --output $1.signed.xml $1
# XML Verify dsig cert
cd /data/cadeias
which xmllint >> /dev/null
if [ $? -ne 0 ]; then
echo "\nxmllint not found\n\nsudo apt-get install libxml2-utils \n\n"
exit
fi
which xmlsec1 >> /dev/null
if [ $? -ne 0 ]; then
echo "\nxmlsec1 not found \n\nsudo apt-get install xmlsec1 \n\n"
exit
fi
if [ -z "$1" ]; then
echo "Usage $0 "
exit
fi
xmlsec1 --verify --print-xml-debug $(for i in *.pem; do echo -n " --trusted-pem $i"; done) $1 2>/dev/null | xmllint --format -
import re
regex = re.compile(("([a-z0-9!#$%&'*+\/=?^_`{|}~-]+(?:\.[a-z0-9!#$%&'*+\/=?^_`"
"{|}~-]+)*(@|\sat\s)(?:[a-z0-9](?:[a-z0-9-]*[a-z0-9])?(\.|"
"\sdot\s))+[a-z0-9](?:[a-z0-9-]*[a-z0-9])?)"))
s = """
txt contendo os enderecos de emails no corpo
txt contendo os enderecos de emails no corpo
txt contendo os enderecos de emails no corpo
txt contendo os enderecos de emails no corpo
"""
emls = []
for i in (email[0] for email in re.findall(regex, s) if not email[0].startswith('//')):
if "@" in i:
eml = i.split("@")[1]
if not eml in emls:
emls.append(eml)
for i in sorted(emls):
if not "myusername" in i:
print "*"+i+" REJECT"
"""
-- Requisitos --
-- Instalar o módulo:
py -m pip install mysql-connector
-- Criar a tabela no banco MySQL
CREATE TABLE clientes (
id INT AUTO_INCREMENT PRIMARY KEY
,nome VARCHAR(255) NOT NULL
,cpf VARCHAR(14) UNIQUE NOT NULL
,email VARCHAR(255) NOT NULL
,telefone VARCHAR(20) NOT NUL
);
"""
import mysql.connector
class Cliente:
def __init__(self, nome, cpf, email, telefone):
self.nome = nome
self.cpf = cpf
self.email = email
self.telefone = telefone
def CriarCliente(self, host, usuario, senha, banco):
try:
mydb = mysql.connector.connect(
host=host
,user=usuario
,password=senha
,database=banco
)
mycursor = mydb.cursor()
sql = "INSERT INTO clientes (nome, cpf, email, telefone) VALUES (%s, %s, %s, %s)"
val = (self.nome, self.cpf, self.email, self.telefone)
mycursor.execute(sql, val)
mydb.commit()
print(mycursor.rowcount, "registro inserido.")
mydb.close()
return True
except mysql.connector.Error as err:
print(f"Erro ao criar cliente: {err}")
return False
@staticmethod
def LerCliente(host, usuario, senha, banco, cpf):
try:
mydb = mysql.connector.connect(
host=host
,user=usuario
,password=senha
,database=banco
)
mycursor = mydb.cursor()
sql = "SELECT nome, email, telefone FROM clientes WHERE cpf = %s"
val = (cpf,)
mycursor.execute(sql, val)
resultado = mycursor.fetchone()
mydb.close()
if resultado:
print(f"Nome: {resultado[0]}, Email: {resultado[1]}, Telefone: {resultado[2]}")
return resultado
else:
print("Cliente não encontrado.")
return None
except mysql.connector.Error as err:
print(f"Erro ao ler cliente: {err}")
return None
def AtualizarCliente(self, host, usuario, senha, banco):
try:
mydb = mysql.connector.connect(
host=host
,user=usuario
,password=senha
,database=banco
)
mycursor = mydb.cursor()
sql = "UPDATE clientes SET nome = %s, email = %s, telefone = %s WHERE cpf = %s"
val = (self.nome, self.email, self.telefone, self.cpf)
mycursor.execute(sql, val)
mydb.commit()
print(mycursor.rowcount, "registro(s) atualizado(s).")
mydb.close()
return True
except mysql.connector.Error as err:
print(f"Erro ao atualizar cliente: {err}")
return False
@staticmethod
def DeletarCliente(host, usuario, senha, banco, cpf):
try:
mydb = mysql.connector.connect(
host=host
,user=usuario
,password=senha
,database=banco
)
mycursor = mydb.cursor()
sql = "DELETE FROM clientes WHERE cpf = %s"
val = (cpf,)
mycursor.execute(sql, val)
mydb.commit()
print(mycursor.rowcount, "registro(s) deletado(s).")
mydb.close()
return True
except mysql.connector.Error as err:
print(f"Erro ao deletar cliente: {err}")
return False
# Exemplo de uso:
if __name__ == "__main__":
# Configurações do banco de dados
dbHost = "localhost" # Substitua pelo endereço do MySQL
dbUser = "seu_usuario" # Substitua pelo seu usuário do MySQL
dbPassword = "sua_senha" # Substitua pela sua senha do MySQL
dbName = "seu_banco" # Substitua pelo nome do seu banco de dados
# Criando um novo cliente
novoCliente = Cliente("João Silva", "123.456.789-00", "joao.silva@email.com", "(11) 99999-9999")
novoCliente.CriarCliente(dbHost, dbUser, dbPassword, dbName)
# Lendo um cliente existente
Cliente.LerCliente(dbHost, dbUser, dbPassword, dbName, "123.456.789-00")
# Atualizando o cliente
novoCliente.nome = "João da Silva"
novoCliente.AtualizarCliente(dbHost, dbUser, dbPassword, dbName)
Cliente.LerCliente(dbHost, dbUser, dbPassword, dbName, "123.456.789-00")
# Deletando o cliente
Cliente.DeletarCliente(dbHost, dbUser, dbPassword, dbName, "123.456.789-00")
Cliente.LerCliente(dbHost, dbUser, dbPassword, dbName, "123.456.789-00")
// -- Requisitos --
//
// -- Instalar o módulo:
// dotnet add package mysql.data
//
// -- Criar a tabela no banco MySQL
// CREATE TABLE clientes (
// id INT AUTO_INCREMENT PRIMARY KEY
// ,nome VARCHAR(255) NOT NULL
// ,cpf VARCHAR(14) UNIQUE NOT NULL
// ,email VARCHAR(255) NOT NULL
// ,telefone VARCHAR(20) NOT NUL
// );
using System;
using MySql.Data.MySqlClient;
public class Cliente {
public string Nome { get; set; }
public string Cpf { get; set; }
public string Email { get; set; }
public string Telefone { get; set; }
public Cliente(string nome, string cpf, string email, string telefone) {
Nome = nome;
Cpf = cpf;
Email = email;
Telefone = telefone;
}
public bool CriarCliente(string host, string usuario, string senha, string banco) {
string connectionString = $"Server={host};Database={banco};Uid={usuario};Pwd={senha};";
try {
using (MySqlConnection connection = new MySqlConnection(connectionString)) {
connection.Open();
string sql =
"INSERT INTO clientes (nome, cpf, email, telefone) VALUES (@Nome, @Cpf, @Email, @Telefone)";
using (MySqlCommand cmd = new MySqlCommand(sql, connection)) {
cmd.Parameters.AddWithValue("@Nome", Nome);
cmd.Parameters.AddWithValue("@Cpf", Cpf);
cmd.Parameters.AddWithValue("@Email", Email);
cmd.Parameters.AddWithValue("@Telefone", Telefone);
int rowsAffected = cmd.ExecuteNonQuery();
Console.WriteLine($"{rowsAffected} registro inserido.");
return true;
}
}
} catch (MySqlException ex) {
Console.WriteLine($"Erro ao criar cliente: {ex.Message}");
return false;
}
}
public static Cliente LerCliente(
string host
,string usuario
,string senha
,string banco
,string cpf
) {
string connectionString = $"Server={host};Database={banco};Uid={usuario};Pwd={senha};";
try {
using (MySqlConnection connection = new MySqlConnection(connectionString)) {
connection.Open();
string sql = "SELECT nome, email, telefone FROM clientes WHERE cpf = @Cpf";
using (MySqlCommand cmd = new MySqlCommand(sql, connection)) {
cmd.Parameters.AddWithValue("@Cpf", cpf);
using (MySqlDataReader reader = cmd.ExecuteReader()) {
if (reader.Read()) {
string nome = reader.GetString("nome");
string email = reader.GetString("email");
string telefone = reader.GetString("telefone");
Console.WriteLine(
$"Nome: {nome}, Email: {email}, Telefone: {telefone}"
);
return new Cliente(nome, cpf, email, telefone);
} else {
Console.WriteLine("Cliente não encontrado.");
return null;
}
}
}
}
} catch (MySqlException ex) {
Console.WriteLine($"Erro ao ler cliente: {ex.Message}");
return null;
}
}
public bool AtualizarCliente(string host, string usuario, string senha, string banco) {
string connectionString = $"Server={host};Database={banco};Uid={usuario};Pwd={senha};";
try {
using (MySqlConnection connection = new MySqlConnection(connectionString)) {
connection.Open();
string sql =
"UPDATE clientes SET nome = @Nome, email = @Email, telefone = @Telefone WHERE cpf = @Cpf";
using (MySqlCommand cmd = new MySqlCommand(sql, connection)) {
cmd.Parameters.AddWithValue("@Nome", Nome);
cmd.Parameters.AddWithValue("@Email", Email);
cmd.Parameters.AddWithValue("@Telefone", Telefone);
cmd.Parameters.AddWithValue("@Cpf", Cpf);
int rowsAffected = cmd.ExecuteNonQuery();
Console.WriteLine($"{rowsAffected} registro(s) atualizado(s).");
return true;
}
}
} catch (MySqlException ex) {
Console.WriteLine($"Erro ao atualizar cliente: {ex.Message}");
return false;
}
}
public static bool DeletarCliente(
string host
,string usuario
,string senha
,string banco
,string cpf
) {
string connectionString = $"Server={host};Database={banco};Uid={usuario};Pwd={senha};";
try {
using (MySqlConnection connection = new MySqlConnection(connectionString)) {
connection.Open();
string sql = "DELETE FROM clientes WHERE cpf = @Cpf";
using (MySqlCommand cmd = new MySqlCommand(sql, connection)) {
cmd.Parameters.AddWithValue("@Cpf", cpf);
int rowsAffected = cmd.ExecuteNonQuery();
Console.WriteLine($"{rowsAffected} registro(s) deletado(s).");
return true;
}
}
} catch (MySqlException ex) {
Console.WriteLine($"Erro ao deletar cliente: {ex.Message}");
return false;
}
}
public static void Main(string[] args) {
// Configurações do banco de dados
string dbHost = "localhost"; // Substitua pelo endereço do MySQL
string dbUser = "seu_usuario"; // Substitua pelo seu usuário do MySQL
string dbPassword = "sua_senha"; // Substitua pela sua senha do MySQL
string dbName = "seu_banco"; // Substitua pelo nome do seu banco de dados
// Criando um novo cliente
Cliente novoCliente = new Cliente(
"Maria Souza"
,"987.654.321-00"
,"maria.souza@email.com"
,"(11) 88888-8888"
);
novoCliente.CriarCliente(dbHost, dbUser, dbPassword, dbName);
// Lendo um cliente existente
Cliente clienteExistente = Cliente.LerCliente(
dbHost
,dbUser
,dbPassword
,dbName
,"987.654.321-00"
);
if (clienteExistente != null) {
// Atualizando o cliente
clienteExistente.Nome = "Maria de Souza";
clienteExistente.AtualizarCliente(dbHost, dbUser, dbPassword, dbName);
Cliente.LerCliente(dbHost, dbUser, dbPassword, dbName, "987.654.321-00");
// Deletando o cliente
Cliente.DeletarCliente(dbHost, dbUser, dbPassword, dbName, "987.654.321-00");
Cliente.LerCliente(dbHost, dbUser, dbPassword, dbName, "987.654.321-00");
}
}
}
"\Program Files (x86)\ImageMagick-7.0.7-Q16\magick.exe" compare -verbose -metric RMSE MOZ-07ZC.jpg MOZ-077C.jpg NULL:
SELECT GROUP_CONCAT('kill ',id SEPARATOR '; ') AS kill_list FROM INFORMATION_SCHEMA.PROCESSLIST WHERE command='Sleep' and TIME>300;
from lxml import etree
import glob
for f in glob.glob(r"C:\path\top\xml\files\*.xml"):
print f.split("\\")[-1]
x = open(f).read()
xp = etree.fromstring(x)
xo = xp.findall(".//")
for i in xo:
if i.tag.endswith("TAGNAME"):
print " "+i.attrib["ATTRIBUTE"].split("\\")[1]
== MASTER ==
1. Editar
/etc/my.cnf
%PROGRAMDATA%\MySQL\MySQL Server 5.7\my.ini
%PROGRAMDATA%\MySQL\MySQL Server 5.7\my.cnf
Adicionar em [mysqld]
server-id=1
binlog-format=mixed
log-bin=mysql-bin
innodb_flush_log_at_trx_commit=1
sync_binlog=1
2. Reiniciar o serviço
systemctl restart mysqld
net stop wampmysqld; net start wampmysqld
3. Criar um usuário de replicação
CREATE USER 'repl'@'%' IDENTIFIED BY 'replpass';
GRANT REPLICATION SLAVE ON *.* TO 'repl'@'%' IDENTIFIED BY 'replpass';
FLUSH PRIVILEGES;
4. Dump do banco com dados de binlog
mysqldump --skip-lock-tables --single-transaction --flush-logs --master-data=2 -A > dump.sql
5. Caso o arquivo seja muito grande, pode zipar ele
gzip -9 ~/mysqldump.sql
6. Tranferir para o outro servidor
scp dump.sql.gz root@IP_DO_SECONDARY:~/
== SECONDARY ==
1. Extrair o zip, caso esteja zipado
gunzip dump.sql.gz
2. Importar no banco
mysql -uroot -p < dump.sql
3. Editar
/etc/my.cnf
%PROGRAMDATA%\MySQL\MySQL Server 5.7\my.ini
%PROGRAMDATA%\MySQL\MySQL Server 5.7\my.cnf
Adicionar em [mysqld]
server-id = 2
binlog-format = mixed
log_bin = mysql-bin
relay-log = mysql-relay-bin
log-slave-updates = 1
read-only = 1
4. Reiniciar o serviço
systemctl restart mysqld
net stop wampmysqld; net start wampmysqld
5. Buscar as informações de posição de log no momento do dump
head dump.sql -n80 | grep "MASTER_LOG_POS"
6. Ativar a replicação no SECONDARY
STOP SLAVE;
CHANGE MASTER TO MASTER_HOST='10.0.0.3'
, MASTER_USER='repl'
, MASTER_PASSWORD='replpass'
, MASTER_LOG_FILE='mysql-bin.000054'
, MASTER_LOG_POS=98;
STOP SLAVE;
7. Verificar status
SHOW SLAVE STATUS \G
vim /etc/mysql/mysql.conf.d/mysqld.cnf
[mysqld]
wait_timeout = 600
max_allowed_packet = 64M
service mysql restart
cp -vf sshd_config /etc/ssh/
cp -vf mysqld.cnf /etc/mysql/mysql.conf.d/
mysql -B --silent --raw -e "show master status;"
BINFILE=`mysql -B --silent --raw -e "show master status;" | cut -f1`
BINPOS=`mysql -B --silent --raw -e "show master status;" | cut -f2`
cat setup02.sql | sed "s/BINFILE/$BINFILE/" | sed "s/BINPOS/$BINPOS/" > setup02.comp.sql
sshpass -p myusername ssh root@192.168.25.82
sshpass -p myusername ssh root@192.168.25.82 "ls -la"
1. first, run these bash commands
sudo /etc/init.d/mysql stop
sudo mysqld_safe --skip-grant-tables &
mysql -uroot
2. then run mysql commands => copy paste this to cli manually
use mysql;
update user set authentication_string=PASSWORD("") where User='root';
update user set plugin="mysql_native_password" where User='root';
flush privileges;
quit;
3. run more bash commands
sudo /etc/init.d/mysql stop
sudo /etc/init.d/mysql start # reset mysql
# try login to database, just press enter at password prompt because your password is now blank
mysql -u root -p
4. Socket issue (from your comments)
When you see a socket error, a community came with 2 possible solutions:
sudo mkdir -p /var/run/mysqld; sudo chown mysql /var/run/mysqld
sudo mysqld_safe --skip-grant-tables &
Or
mkdir -p /var/run/mysqld && chown mysql:mysql /var/run/mysqld
MSG=""
# Check and restart MySQL
mysql -e "show databases" || {
MSG="$MSG MySQL"
for i in 1 2 3 4 5 6; do
echo service mysqld stop
done
for i in 1 2 3 4 5 6; do
echo killall -9 mysqld
done
for i in 1 2 3 4 5 6; do
service mysqld start
done
}
# Check and restart Apache
curl http://localhost || {
MSG="$MSG Apache"
for i in 1 2 3 4 5 6; do
echo service apache2 stop
done
for i in 1 2 3 4 5 6; do
service apache2 start
done
}
# Disk free in percentage
[ $(df -h / | grep dev | awk '{print $5}' | sed 's/[^0-9]//g') -gt 30 ] || MSG="$MSG Disk almost full"
# Ram use in percentage
[ $(free | grep -i mem | awk '{print int(($3/($2+1))*100)}') -lt 70 ] || MSG="$MSG RAM almost full"
# Swap use in percentage
[ $(free | grep -i swap | awk '{print int(($3/($2+1))*100)}') -lt 80 ] || MSG="$MSG SWAP almost full"
# Send push
[ "$MSG" == "" ] || curl -s --form-string "token=seu_token" --form-string "user=seu_user" --form-string "message=Servidor MySQL 012456 offline" https://api.pushover.net/1/messages.json
sysctl -w net.ipv4.conf.all.route_localnet=1
iptables -t nat -A OUTPUT -m addrtype --src-type LOCAL --dst-type LOCAL -p tcp --dport 3306 -j DNAT --to-destination 192.168.11.22:3306
iptables -t nat -A POSTROUTING -m addrtype --src-type LOCAL --dst-type UNICAST -j MASQUERADE
<VirtualHost *:80>
ServerName www.foo.local
DocumentRoot /pasta/de/projetos/foo
ScriptAlias /cgi-bin /pasta/de/projetos/foo/cgi-bin/
<Directory "/pasta/de/projetos/foo/cgi-bin">
AllowOverride None
Options +ExecCGI -MultiViews +SymLinksIfOwnerMatch -Includes -Indexes
#AddHandler cgi-script .pl .py .bin .sh
SetHandler cgi-script
Order allow,deny
Allow from all
</Directory>
</VirtualHost>
a2emod cgi
service apache2 restart
#!/usr/bin/env python3.7
# vim: tabstop=4 shiftwidth=4 expandtab
from wsgiref.handlers import CGIHandler
from urllib.parse import parse_qs
from html import escape
import sys
import traceback
import time
import uuid
def error(environ, start_response):
s = traceback.format_exc()
return [s.encode()]
return ["Em manutenção".encode()]
def app(environ, start_response):
headers = [
('Content-Type', 'text/plain'),
]
if not "HTTP_COOKIE" in environ:
i = (str(uuid.uuid1())+str(uuid.uuid4())).replace("-", "")
headers.append(('Set-Cookie', f'ocs={i}; Path=/'))
start_response('200 OK', headers)
#return ["ok".encode()]
ret = [("%s: %s\n" % (key, value)).encode("utf-8") for key, value in environ.items()]
d = parse_qs(environ['QUERY_STRING'])
retv = [("%s: %s\n" % (key, value)).encode("utf-8") for key, value in d.items()]
#d = parse_qs(environ['wsgi.input'].read())
#retv = [("%s: %s\n" % (key, value)).encode("utf-8") for key, value in d.items()]
if 'PATH_INFO' in environ:
ret += [("V:%s\n" % (value)).encode("utf-8") for value in environ['PATH_INFO'][1:].split('/')]
return ret
return [environ["wsgi.input"].read()]
return [sys.stdin.read().encode("utf-8")]
#age = d.get('age', [''])[0] # Returns the first age value.
#hobbies = d.get('hobbies', []) # Returns a list of hobbies.
ch = CGIHandler()
ch.error_output = error
ch.run(app)
reg add HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Search /f /v BingSearchEnabled /t REG_DWORD /d 0
reg add HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Search /f /v AllowSearchToUseLocation /t REG_DWORD /d 0
reg add HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Search /f /v CortanaConsent /t REG_DWORD /d 0
lxd init --auto
lxc list
lxc images list images:
lxc launch ubuntu:20.04 u1
lxc start u1
lxc info u1
lxc exec u1 -- bash
lxc config device add u1 myport80 proxy listen=tcp:0.0.0.0:80 connect=tcp:127.0.0.1:80
lxc config device remove u1 myport80
lxc config device add u1 datadir disk source=/data path=/data
lxc config device remove u1 datadir
DELIMITER $$
CREATE DEFINER=`root`@`%` PROCEDURE `TESTEDIN`(
IN `JSIN` JSON
)
LANGUAGE SQL
NOT DETERMINISTIC
CONTAINS SQL
SQL SECURITY DEFINER
COMMENT ''
BEGIN
DECLARE RESF TEXT;
DECLARE RESV TEXT;
DECLARE NUM_ROWS INT;
DECLARE I INT;
DECLARE COL_NAME VARCHAR(50);
DECLARE TEMPFIELD VARCHAR(50);
DECLARE COL_NAMES CURSOR FOR
SELECT COLUMN_NAME
FROM INFORMATION_SCHEMA.COLUMNS
WHERE TABLE_NAME = 'ALUNOS'
ORDER BY ORDINAL_POSITION;
OPEN COL_NAMES;
SELECT FOUND_ROWS() INTO NUM_ROWS;
SET I = 1;
THE_LOOP: LOOP
IF I > NUM_ROWS THEN
CLOSE COL_NAMES;
LEAVE THE_LOOP;
END IF;
FETCH COL_NAMES
INTO COL_NAME;
SET TEMPFIELD = JSON_UNQUOTE(JSON_EXTRACT(JSIN, CONCAT('$.', COL_NAME)));
IF NOT ISNULL(TEMPFIELD) THEN
SET RESF = CONCAT(COALESCE(RESF, ''), "'", COL_NAME, "',");
SET RESV = CONCAT(COALESCE(RESV, ''), "'", TEMPFIELD, "',");
END IF;
SET I = I + 1;
END LOOP THE_LOOP;
SET RESF = LEFT(RESF, CHAR_LENGTH(RESF) - 1);
SET RESV = LEFT(RESV, CHAR_LENGTH(RESV) - 1);
SELECT CONCAT('INSERT INTO TABELA (', RESF, ') VALUES (', RESV, ');') Q;
END$$
DELIMITER ;
CALL TESTEDIN('{"NOME":"GUSTAVO", "OUTRO":"123", "ID":"12", "DB":"PROF01", "TURMA":"BD1", "NADA":"NADA"}');
AND (&) OR (|) XOR (^) NOT (~) Shift LEFT (<<)
0 & 0 = 0 0 | 0 = 0 0 ^ 0 = 0 0 ~ = 1 010110 << 1 = 101100
0 & 1 = 0 0 | 1 = 1 0 ^ 1 = 1 0 ~ = 1 010110 << 2 = 011000
1 & 0 = 0 1 | 0 = 1 1 ^ 0 = 1 1 ~ = 0
1 & 1 = 1 1 | 1 = 1 1 ^ 1 = 0 1 ~ = 0
Shift RIGHT (>>)
1100 & 1100 | 1100 ^ 1100 ~= 010110 >> 1 = 001011
1010 1010 1010 0011 010110 >> 2 = 000101
---- ---- ----
1000 1110 0110
Dec Oct Hex Binary Dec Oct Hex Binary Dec Oct Hex Binary
--- --- --- --------- --- --- --- --------- --- --- --- ---------
000 000 000 0000.0000 043 053 02B 0010.1011 086 126 056 0101.0110
001 001 001 0000.0001 044 054 02C 0010.1100 087 127 057 0101.0111
002 002 002 0000.0010 045 055 02D 0010.1101 088 130 058 0101.1000
003 003 003 0000.0011 046 056 02E 0010.1110 089 131 059 0101.1001
004 004 004 0000.0100 047 057 02F 0010.1111 090 132 05A 0101.1010
005 005 005 0000.0101 048 060 030 0011.0000 091 133 05B 0101.1011
006 006 006 0000.0110 049 061 031 0011.0001 092 134 05C 0101.1100
007 007 007 0000.0111 050 062 032 0011.0010 093 135 05D 0101.1101
008 010 008 0000.1000 051 063 033 0011.0011 094 136 05E 0101.1110
009 011 009 0000.1001 052 064 034 0011.0100 095 137 05F 0101.1111
010 012 00A 0000.1010 053 065 035 0011.0101 096 140 060 0110.0000
011 013 00B 0000.1011 054 066 036 0011.0110 097 141 061 0110.0001
012 014 00C 0000.1100 055 067 037 0011.0111 098 142 062 0110.0010
013 015 00D 0000.1101 056 070 038 0011.1000 099 143 063 0110.0011
014 016 00E 0000.1110 057 071 039 0011.1001 100 144 064 0110.0100
015 017 00F 0000.1111 058 072 03A 0011.1010 101 145 065 0110.0101
016 020 010 0001.0000 059 073 03B 0011.1011 102 146 066 0110.0110
017 021 011 0001.0001 060 074 03C 0011.1100 103 147 067 0110.0111
018 022 012 0001.0010 061 075 03D 0011.1101 104 150 068 0110.1000
019 023 013 0001.0011 062 076 03E 0011.1110 105 151 069 0110.1001
020 024 014 0001.0100 063 077 03F 0011.1111 106 152 06A 0110.1010
021 025 015 0001.0101 064 100 040 0100.0000 107 153 06B 0110.1011
022 026 016 0001.0110 065 101 041 0100.0001 108 154 06C 0110.1100
023 027 017 0001.0111 066 102 042 0100.0010 109 155 06D 0110.1101
024 030 018 0001.1000 067 103 043 0100.0011 110 156 06E 0110.1110
025 031 019 0001.1001 068 104 044 0100.0100 111 157 06F 0110.1111
026 032 01A 0001.1010 069 105 045 0100.0101 112 160 070 0111.0000
027 033 01B 0001.1011 070 106 046 0100.0110 113 161 071 0111.0001
028 034 01C 0001.1100 071 107 047 0100.0111 114 162 072 0111.0010
029 035 01D 0001.1101 072 110 048 0100.1000 115 163 073 0111.0011
030 036 01E 0001.1110 073 111 049 0100.1001 116 164 074 0111.0100
031 037 01F 0001.1111 074 112 04A 0100.1010 117 165 075 0111.0101
032 040 020 0010.0000 075 113 04B 0100.1011 118 166 076 0111.0110
033 041 021 0010.0001 076 114 04C 0100.1100 119 167 077 0111.0111
034 042 022 0010.0010 077 115 04D 0100.1101 120 170 078 0111.1000
035 043 023 0010.0011 078 116 04E 0100.1110 121 171 079 0111.1001
036 044 024 0010.0100 079 117 04F 0100.1111 122 172 07A 0111.1010
037 045 025 0010.0101 080 120 050 0101.0000 123 173 07B 0111.1011
038 046 026 0010.0110 081 121 051 0101.0001 124 174 07C 0111.1100
039 047 027 0010.0111 082 122 052 0101.0010 125 175 07D 0111.1101
040 050 028 0010.1000 083 123 053 0101.0011 126 176 07E 0111.1110
041 051 029 0010.1001 084 124 054 0101.0100 127 177 07F 0111.1111
042 052 02A 0010.1010 085 125 055 0101.0101 128 178 080 1000.0000
nul 0 0000 0x00 | sp 32 0040 0x20 | @ 64 0100 0x40 | ` 96 0140 0x60
soh 1 0001 0x01 | ! 33 0041 0x21 | A 65 0101 0x41 | a 97 0141 0x61
stx 2 0002 0x02 | " 34 0042 0x22 | B 66 0102 0x42 | b 98 0142 0x62
etx 3 0003 0x03 | # 35 0043 0x23 | C 67 0103 0x43 | c 99 0143 0x63
eot 4 0004 0x04 | $ 36 0044 0x24 | D 68 0104 0x44 | d 100 0144 0x64
enq 5 0005 0x05 | % 37 0045 0x25 | E 69 0105 0x45 | e 101 0145 0x65
ack 6 0006 0x06 | & 38 0046 0x26 | F 70 0106 0x46 | f 102 0146 0x66
bel 7 0007 0x07 | ' 39 0047 0x27 | G 71 0107 0x47 | g 103 0147 0x67
bs 8 0010 0x08 | ( 40 0050 0x28 | H 72 0110 0x48 | h 104 0150 0x68
ht 9 0011 0x09 | ) 41 0051 0x29 | I 73 0111 0x49 | i 105 0151 0x69
nl 10 0012 0x0a | * 42 0052 0x2a | J 74 0112 0x4a | j 106 0152 0x6a
vt 11 0013 0x0b | + 43 0053 0x2b | K 75 0113 0x4b | k 107 0153 0x6b
np 12 0014 0x0c | , 44 0054 0x2c | L 76 0114 0x4c | l 108 0154 0x6c
cr 13 0015 0x0d | - 45 0055 0x2d | M 77 0115 0x4d | m 109 0155 0x6d
so 14 0016 0x0e | . 46 0056 0x2e | N 78 0116 0x4e | n 110 0156 0x6e
si 15 0017 0x0f | / 47 0057 0x2f | O 79 0117 0x4f | o 111 0157 0x6f
dle 16 0020 0x10 | 0 48 0060 0x30 | P 80 0120 0x50 | p 112 0160 0x70
dc1 17 0021 0x11 | 1 49 0061 0x31 | Q 81 0121 0x51 | q 113 0161 0x71
dc2 18 0022 0x12 | 2 50 0062 0x32 | R 82 0122 0x52 | r 114 0162 0x72
dc3 19 0023 0x13 | 3 51 0063 0x33 | S 83 0123 0x53 | s 115 0163 0x73
dc4 20 0024 0x14 | 4 52 0064 0x34 | T 84 0124 0x54 | t 116 0164 0x74
nak 21 0025 0x15 | 5 53 0065 0x35 | U 85 0125 0x55 | u 117 0165 0x75
syn 22 0026 0x16 | 6 54 0066 0x36 | V 86 0126 0x56 | v 118 0166 0x76
etb 23 0027 0x17 | 7 55 0067 0x37 | W 87 0127 0x57 | w 119 0167 0x77
can 24 0030 0x18 | 8 56 0070 0x38 | X 88 0130 0x58 | x 120 0170 0x78
em 25 0031 0x19 | 9 57 0071 0x39 | Y 89 0131 0x59 | y 121 0171 0x79
sub 26 0032 0x1a | : 58 0072 0x3a | Z 90 0132 0x5a | z 122 0172 0x7a
esc 27 0033 0x1b | ; 59 0073 0x3b | [ 91 0133 0x5b | { 123 0173 0x7b
fs 28 0034 0x1c | < 60 0074 0x3c | \ 92 0134 0x5c | | 124 0174 0x7c
gs 29 0035 0x1d | = 61 0075 0x3d | ] 93 0135 0x5d | } 125 0175 0x7d
rs 30 0036 0x1e | > 62 0076 0x3e | ^ 94 0136 0x5e | ~ 126 0176 0x7e
us 31 0037 0x1f | ? 63 0077 0x3f | _ 95 0137 0x5f | del 127 0177 0x7f
#include <stdio.h>
int main() {
printf("Hello\n");
return 0;
}
#include <stdio.h>
int main(void) {
int age = 37;
printf("\n%p", &age);
printf("\n%u", age);
printf("\nIdade:");
scanf("%u", &age);
int *address = &age;
printf("\n%u", *address);
*address = 38;
printf("\n%u", *address);
int prices[3] = { 5, 4, 3 };
printf("\n%u", *prices);
printf("\n%u", *(prices + 1));
printf("\n");
return 0;
}
#include <stdio.h>
#include <stdlib.h>
typedef struct {
int Idade;
float Peso;
float Altura;
} Paciente;
void PrintPaciente(Paciente *P) {
printf("Idade: %d Peso: %f Altura: %f\n", P->Idade, P->Peso, P->Altura);
}
void SetPaciente(Paciente *P, int idade, float peso, float altura) {
printf("Endereco ref: %p\n", &P);
P->Idade = idade;
P->Peso = peso;
P->Altura = altura;
}
Paciente SetPacienteVal(Paciente P, int idade, float peso, float altura) {
printf("Endereco val: %p\n", &P);
P.Idade = idade;
P.Peso = peso;
P.Altura = altura;
return P;
}
int main() {
Paciente *Pedro = malloc(sizeof(Paciente));
SetPaciente(Pedro, 15, 70.5, 1.75);
PrintPaciente(Pedro);
SetPaciente(Pedro, 18, 80.0, 1.85);
SetPaciente(Pedro, 18, 80.0, 1.85);
SetPaciente(Pedro, 18, 80.0, 1.85);
PrintPaciente(Pedro);
Paciente PedroCopia = SetPacienteVal(*Pedro, 28, 80.0, 1.85);
PrintPaciente(&PedroCopia);
free(Pedro);
Pedro = NULL; //evita dangling pointer
return 0;
}
%[flags][width][.precision][length]specifier
Specifiers
d or i Signed decimal integer 392
u Unsigned decimal integer 7235
o Unsigned octal 610
x Unsigned hexadecimal integer 7fa
X Unsigned hexadecimal integer (uc) 7FA
f Decimal floating point (lc) 392.65
F Decimal floating point (uc) 392.65
e Scientific notation (mantissa/exponent), (lc) 3.9265e+2
E Scientific notation (mantissa/exponent), (uc) 3.9265E+2
g Use the shortest representation: %e or %f 392.65
G Use the shortest representation: %E or %F 392.65
a Hexadecimal floating point (lc) -0xc.90fep-2
A Hexadecimal floating point (uc) -0XC.90FEP-2
p Pointer address b8000000
c Character a
s String of characters test
%% % character %
n Nothing printed
flags
- Left-justify within the given field width; Right is default (see width sub-specifier)
+ Forces to preceed the result with a plus or minus sign (+ or -) even for positive numbers
(space) If no sign is going to be written, a blank space is inserted before the value.
# Used with o, x or X specifiers the value is preceeded with 0, 0x or 0X respectively for values different than zero.
Used with a, A, e, E, f, F, g or G it forces the written output to contain a decimal point even if no more digits follow.
By default, if no digits follow, no decimal point is written.
0 Left-pads the number with zeroes (0) instead of spaces when padding is specified (see width sub-specifier).
width
(number) Minimum number of characters to be printed.
If the value to be printed is shorter than this number, the result is padded with blank spaces.
The value is not truncated even if the result is larger.
* The width is not specified in the format string, but as an additional integer value argument preceding the argument that has to be formatted.
precision
.number For integer specifiers (d, i, o, u, x, X): precision specifies the minimum number of digits to be written.
If the value to be written is shorter than this number, the result is padded with leading zeros.
The value is not truncated even if the result is longer.
A precision of 0 means that no character is written for the value 0.
For a, A, e, E, f and F specifiers: this is the number of digits to be printed after the decimal point (by default, this is 6).
For g and G specifiers: This is the maximum number of significant digits to be printed.
For s: this is the maximum number of characters to be printed. By default all characters are printed until the ending null character is encountered.
If the period is specified without an explicit value for precision, 0 is assumed.
.* The precision is not specified in the format string, but as an additional integer value argument preceding the argument that has to be formatted.
length
length d i u o x X f F e E g G a A c s p n
(none) int unsigned int double int char* void* int*
hh signed char unsigned char signed char*
h short int unsigned short int short int*
l long int unsigned long int wint_t wchar_t* long int*
ll long long int unsigned long long int long long int*
j intmax_t uintmax_t intmax_t*
z size_t size_t size_t*
t ptrdiff_t ptrdiff_t ptrdiff_t*
L long double
#include <stdio.h>
int main() {
unsigned int a = 60; // 60 = 0011 1100 em binário
unsigned int b = 13; // 13 = 0000 1101 em binário
unsigned int resultado;
// Operação AND (&)
resultado = a & b; // resultado = 12 (0000 1100)
printf("a & b = %u\n", resultado);
// Operação OR (|)
resultado = a | b; // resultado = 61 (0011 1101)
printf("a | b = %u\n", resultado);
// Operação XOR (^)
resultado = a ^ b; // resultado = 49 (0011 0001)
printf("a ^ b = %u\n", resultado);
// Operação Shift Right (>>)
resultado = a >> 2; // resultado = 15 (0000 1111)
printf("a >> 2 = %u\n", resultado);
// Operação Shift Left (<<)
resultado = a << 2; // resultado = 240 (1111 0000)
printf("a << 2 = %u\n", resultado);
return 0;
}
#include <stdio.h>
#include <stdlib.h>
int main(void) {
FILE *filePointer;
char *text = "Some string";
filePointer = fopen("example.txt", "w");
if(filePointer == NULL) {
printf("fopen failed\n");
return 1;
}
fprintf(filePointer, "%s", text);
fclose(pont_arq);
return 0;
}
"rb", "wb", "ab", "rb+", "r+b", "wb+", "w+b", "ab+", "a+b"
r read
w write - create if not exists
a append - create if not exists
r+ read and write - create if not exists - truncate if file exists
a+ append - create if not exists - read from beginning - write to the end
b binary

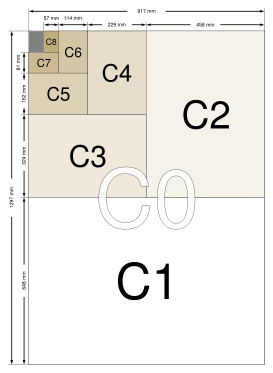

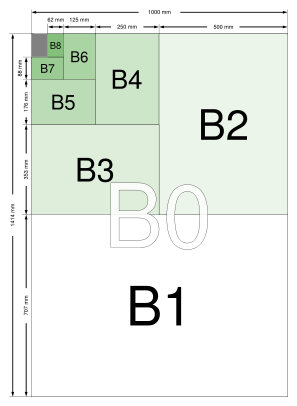

mm inches mm inches mm inches
+------------- A --------------+ +-------------- B --------------+ +------------- C --------------+
0 | 841 x 1189 | 33.1 x 46.8 | | 1000 x 1414 | 39.4 x 55.7 | | 917 x 1297 | 36.1 x 51.1 |
1 | 594 x 841 | 23.4 x 33.1 | | 707 x 1000 | 27.8 x 39.4 | | 648 x 917 | 25.5 x 36.1 |
2 | 420 x 594 | 16.5 x 23.4 | | 500 x 707 | 19.7 x 27.8 | | 458 x 648 | 18.0 x 25.5 |
3 | 297 x 420 | 11.7 x 16.5 | | 353 x 500 | 13.9 x 19.7 | | 324 x 458 | 12.8 x 18.0 |
4 | 210 x 297 | 8.3 x 11.7 | | 250 x 353 | 9.8 x 13.9 | | 229 x 324 | 9.0 x 12.8 |
5 | 148 x 210 | 5.8 x 8.3 | | 176 x 250 | 6.9 x 9.8 | | 162 x 229 | 6.4 x 9.0 |
6 | 105 x 148 | 4.1 x 5.8 | | 125 x 176 | 4.9 x 6.9 | | 114 x 162 | 4.5 x 6.4 |
7 | 74 x 105 | 2.9 x 4.1 | | 88 x 125 | 3.5 x 4.9 | | 81 x 114 | 3.2 x 4.5 |
8 | 52 x 74 | 2.0 x 2.9 | | 62 x 88 | 2.4 x 3.5 | | 57 x 81 | 2.2 x 3.2 |
9 | 37 x 52 | 1.5 x 2.0 | | 44 x 62 | 1.7 x 2.4 | | 40 x 57 | 1.6 x 2.2 |
10 | 26 x 37 | 1.0 x 1.5 | | 31 x 44 | 1.2 x 1.7 | | 28 x 40 | 1.1 x 1.6 |
+--------------+---------------+ +---------------+---------------+ +--------------+---------------+
